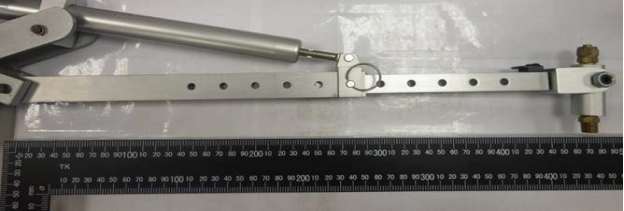

Hydraulic Cylinder Torque Arm Bracket
Hydraulic Cylinder Torque Arm Bracket

Hydraulic Cylinder Torque Arm Bracket

Model

Q1688-P, Q1688-S

Application

Aerospace Industry Tools

Product Inquiry
Product No. Product Name Description Working Range Max Tool Weight Max Torque
Q1688-S Pneumatic Standard Torque Arm
  1. Pneumatic cylinder – suitable for pneumatic tools
  2. Allows tool movement in all directions: forward / backward / left / right (360°)
  3. Two-piece articulated forearm design for greater freedom of movement during operation
  4. Telescopic structure from end to forearm allows easy adjustment with 1-inch precision, up to 6 inches maximum
 4–33" 15 lbs
(6.8kg)		 110 lbs
(49.89kg)
Q1688-P Hydraulic Parallel Torque Arm
  1. Hydraulic cylinder with parallel arm design – suitable for electric tools
  2. Allows parallel left–right (180°) and vertical up–down movement
  3. Two-piece articulated forearm design for greater freedom of movement during operation
  4. Telescopic structure from end to forearm allows easy adjustment with 1-inch precision, up to 6 inches maximum
 4–33" 3 lbs
(1.36kg)		 110 lbs
(49.89kg)
Q1688-P

Hydraulic Parallel Torque Arm

Q1688-S

Pneumatic Standard Torque Arm
