Torque Reaction Arm

Aluminum Telescopic Torque Arm

Model

Q2000-Z1, Q2000-Z2, Q2000-Z3, Q2000-Z5

Application

Aerospace Industry Tools

Product Inquiry

Material	Model	Specifications	Maximum Allowable Torque	Working Distance		Weight
Material	Model	Specifications	Nm	Base Telescopic Length cm	Maximum Telescopic Length cm	Kg
Aluminum	Q2000-Z1	Table Clamp Mount + Bracket + Aluminum Telescopic Tube	30	4.75	105	3.0
	Q2000-Z2	Bracket + Aluminum Telescopic Tube	30	4.75	105	2.0
	Q2000-Z3	Aluminum Telescopic Tube Only	30	4.75	105	1.2
	Q2000-Z5	L-Type 2-Hole Mount + Aluminum Telescopic Tube	30	4.75	105	1.3

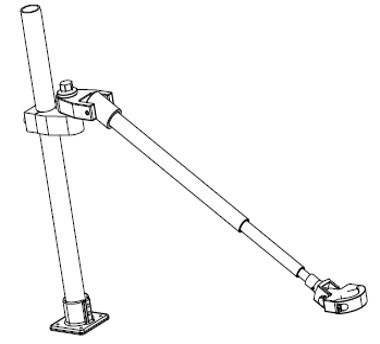

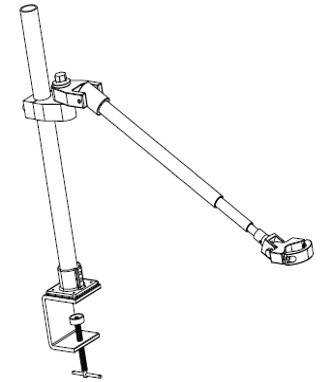

Q2000-Z1

Suitable for installation on any workstation with a right-angle tabletop edge.

Q2000-Z2

Suitable for worktables with pre-drilled holes for direct mounting.

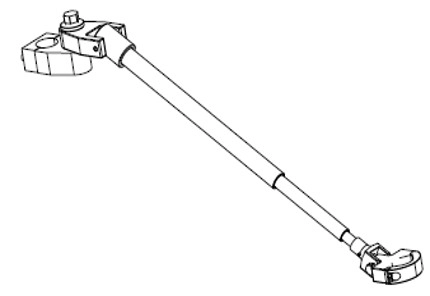

Q2000-Z3

Suitable for mounting onto existing columns or pillars on the production line.

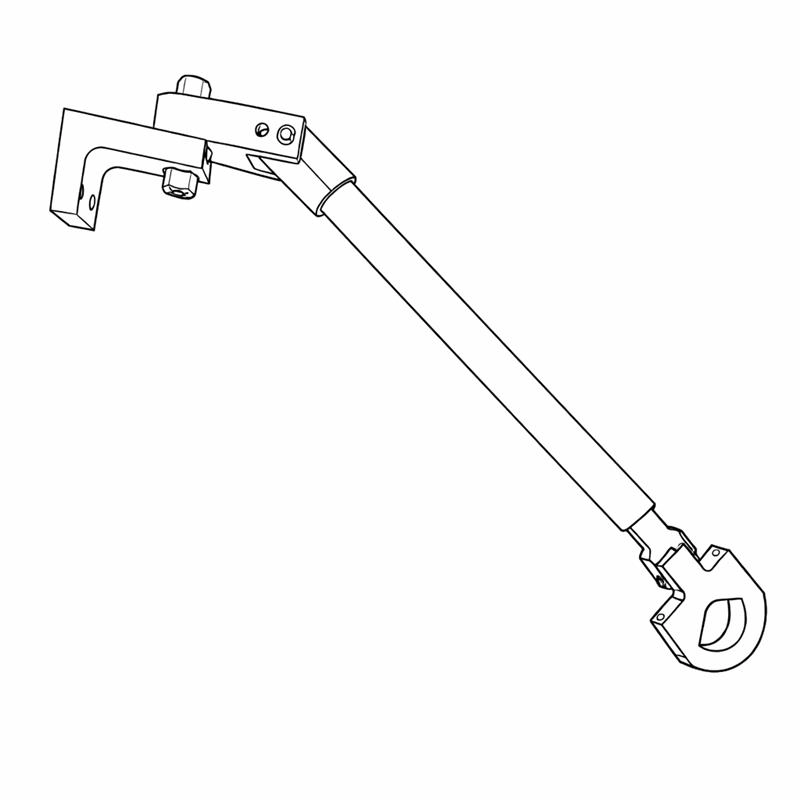

Q2000-Z5

Suitable for mounting on rails, steel plates, or similar structures; drilling is required prior to installation.

Suitable for straight, angle, and pistol-type pneumatic or electric screwdrivers.
Three-stage telescopic design with a minimum working distance of 47.5 cm and a maximum extension of 105 cm.
Available in four configurations, allowing selection based on production line layout requirements.
In addition to a fixed tool standby position, the tool can be easily repositioned during operation.
Reduces reaction force during operation, helping prevent operator injury while improving production line efficiency.
The use of a torque arm is recommended for straight tools (torque above 3 Nm), pistol-type tools (torque above 12 Nm), and angle tools (torque above 20 Nm) to enhance operator safety.
