Torque Reaction Arm

Carbon Fiber Telescopic Torque Arm

Model

Q2000-ZA1, Q2000-ZA2, Q2000-ZA3, Q2000-ZA5

Application

Aerospace Industry Tools

Product Inquiry

Material	Product No.	Specifications	Maximum Allowable Torque	Working Distance		Weight
Material	Product No.	Specifications	Nm	Base Telescopic Length cm	Maximum Telescopic Length cm	Kg
Aluminum	Q2000-ZA1	Table Mount Bracket + Support Arm + Aluminum Telescopic Tube	50	4.7	105	2.9
	Q2000-ZA2	Support Arm + Aluminum Telescopic Tube	50	4.7	105	1.8
	Q2000-ZA3	Aluminum Telescopic Tube	50	4.7	105	1.1
	Q2000-ZA4	L-Type 2-Hole Mount Base + Aluminum Telescopic Tube	50	4.7	105	1.1

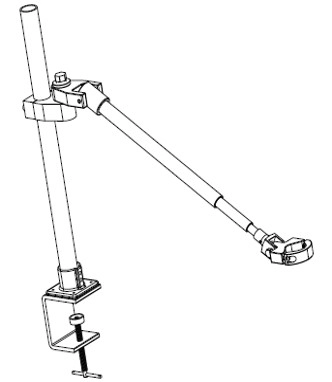

Q2000-ZA1

Suitable for installation on any workstation with a right-angle tabletop edge.

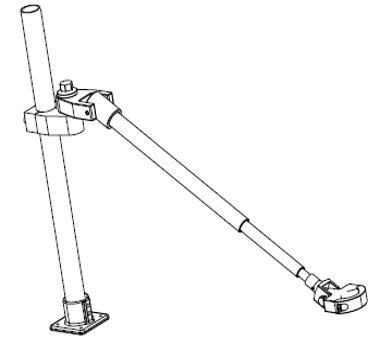

Q2000-ZA2

Suitable for worktables with pre-drilled holes for direct mounting.

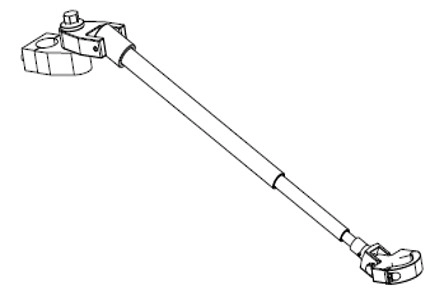

Q2000-ZA3

Suitable for mounting onto existing columns or pillars on the production line.

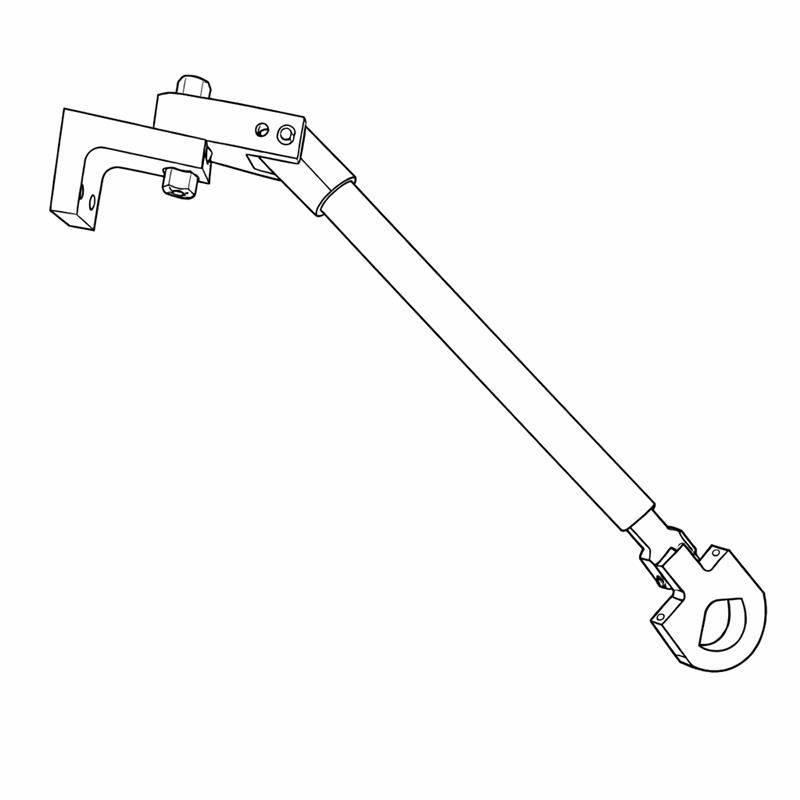

Q2000-ZA5

Suitable for mounting on rails, steel plates, or similar structures; drilling is required prior to installation.

Suitable for straight, angle, and pistol-type pneumatic or electric screwdrivers.
Three-stage telescopic design with a minimum working distance of 47.5 cm and a maximum extension of 105 cm.
Constructed from carbon fiber, offering higher rigidity and greater strength capacity than aluminum.
Available in four configurations, allowing selection based on production line layout requirements.
In addition to a fixed tool standby position, the tool can be easily repositioned during operation.
Reduces reaction force during operation, helping prevent operator injury while improving production line efficiency.
The use of a torque arm is recommended for straight tools (torque above 3 Nm), pistol-type tools (torque above 12 Nm), and angle tools (torque above 20 Nm) to enhance operator safety.
